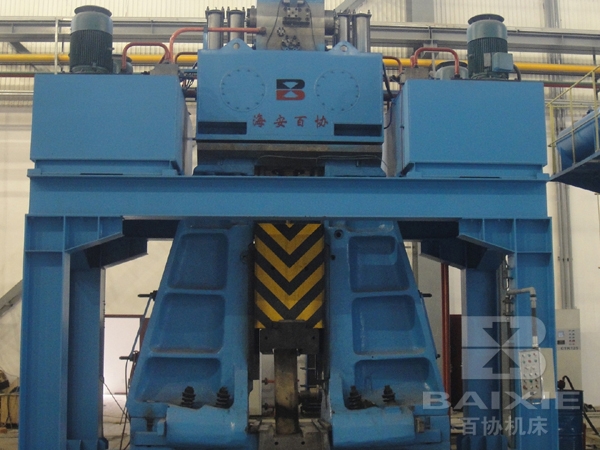

CTK Series CNC Fully-Hydraulic Die Forging Hammer(Hydraulic drive conversion)
CTK Series CNC Fully-Hydraulic Die Forging Hammer(Hydraulic drive conversion)
It is obvious economically to convert out-of-date steam hammer into hydraulic hammer, CTK CNC fully-hydraulic die forging hammer, which can save much cost comparing to buying a new fully-hydraulic die forging hammer.
Sales service hotline: +86-13773683540
Performance and parameters

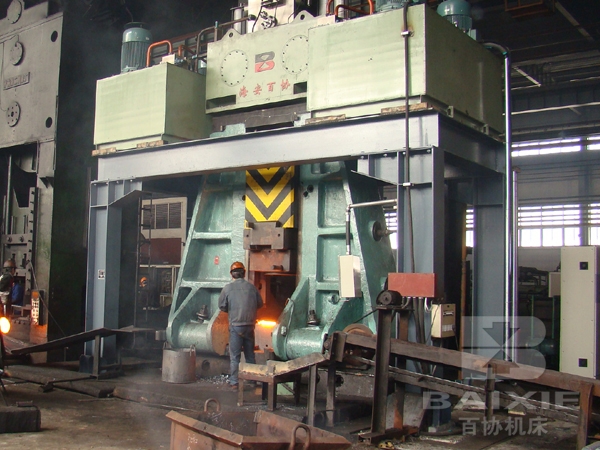

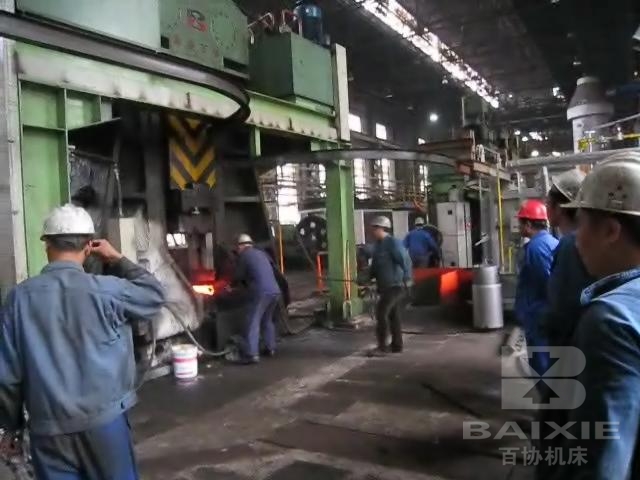

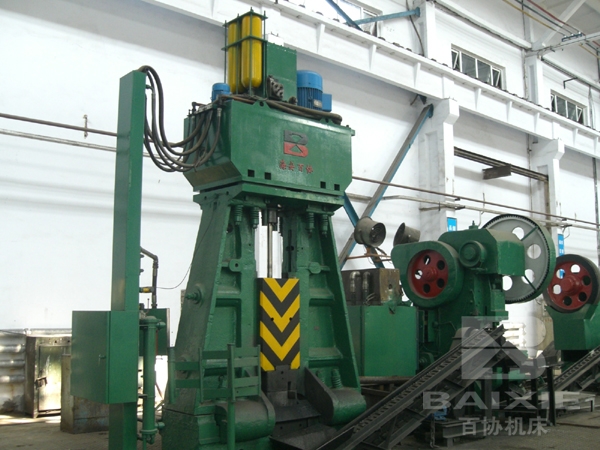

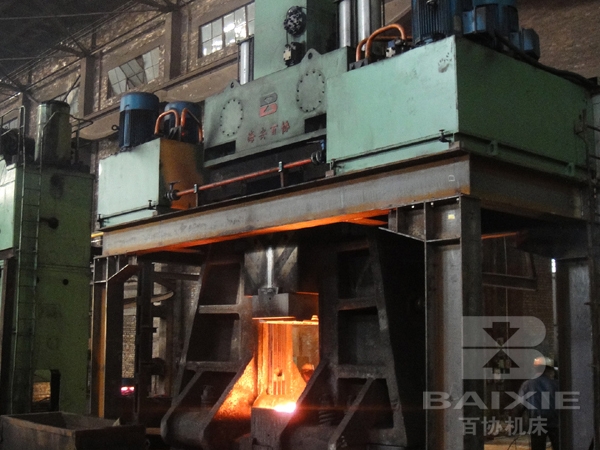

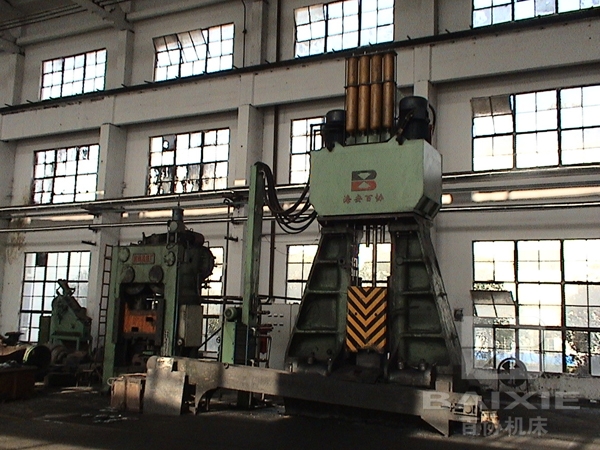

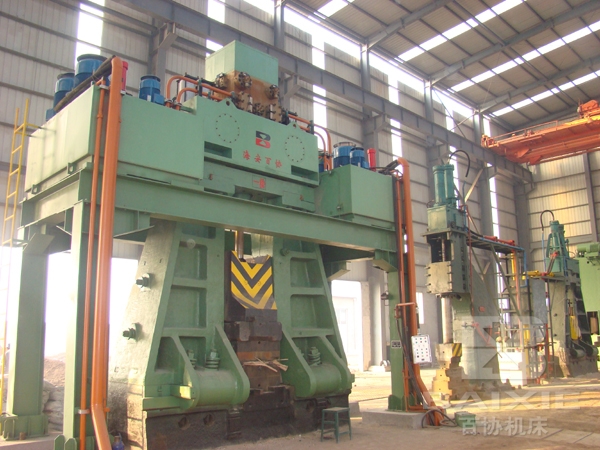

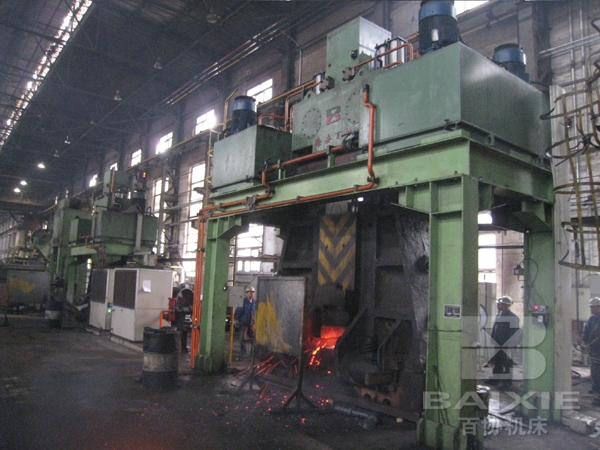

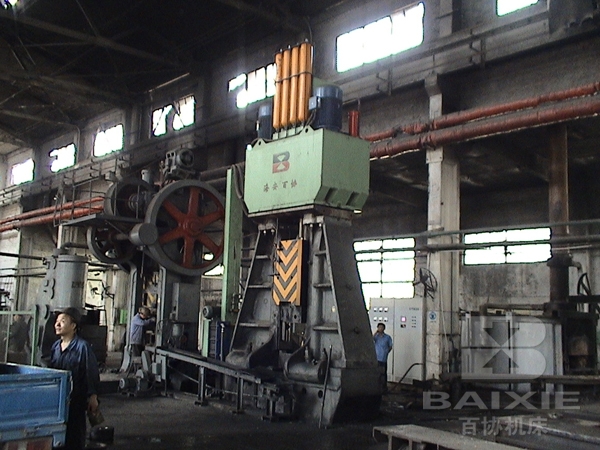

Customer Scenes

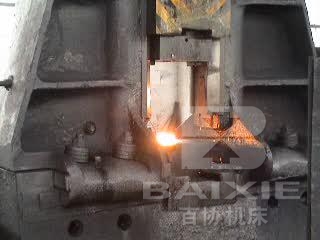

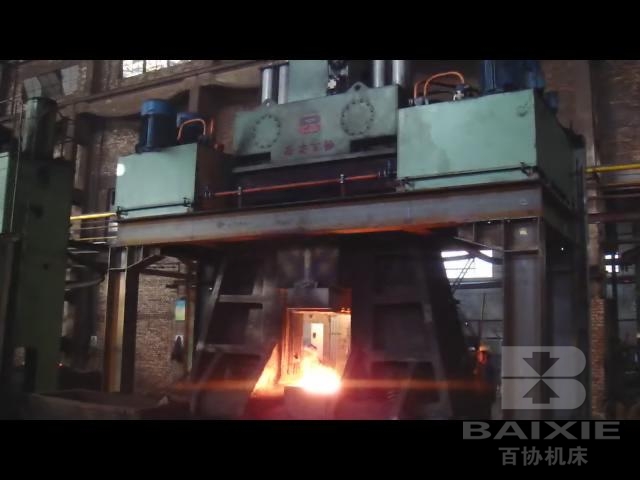

Working video
Download

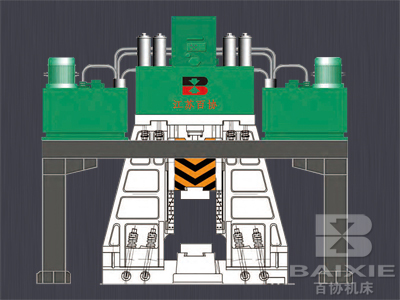

  • Basic construct
    1.High integrated fully hydraulic driving system, no need of pump chamber and hydraulic station;
    2.Programmable striking control and digital inputting;
    3.Long hammer tup enhancing working accuracy;
    4.Striking energy and striking sequence set optionally without surplus striking energy avoiding noise and increasing the die life;
    5.Man- machine interface and automatically malfunction diagnosis, Chinese and English display
    Performance and features
    A.High efficient, energy saving;
    B.Consistent quality of forging;
    C.Lower run cost;
    D.Wide application;
    E.Lower investment cost;
    F.Easy maintenance and operation.
    Technical parameters
    SPEC. CTK 25 50 75 125 250 320 400
    Striking energy KJ 25 50 75 125 250 320 400
    Ram weight KG 1750 3400 5100 8000 11500 13000 17000
    Striking stroke mm 720 850 900 1000 1100 1200 1300
    Striking frequency 90 80 70 60 50 45 45
    Motor power KW 55 2×55 2×90 4×55 4×90 4×110 6×110
