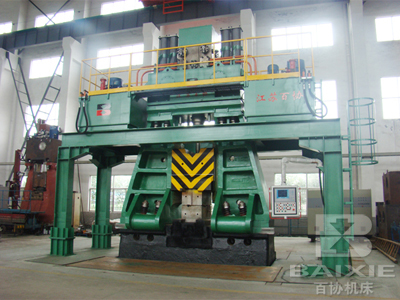

CTKA Series CNC Fully-Hydraulic Die Forging Hammer
CTKA Series CNC Fully-Hydraulic Die Forging Hammer
It is obvious economically to convert out-of-date steam hammer into hydraulic hammer, CTK CNC fully-hydraulic die forging hammer, which can save much cost comparing to buying a new fully-hydraulic die forging hammer.
Sales service hotline: +86-0513-88838848
Performance and parameters
Working video
  • Basic construct
    1.High integrated fully hydraulic driving system, no need of pump chamber and hydraulic station;
    2.Programmable striking control and digital inputting;
    3.Long hammer tup enhancing working accuracy;
    4.Striking energy and striking sequence set optionally without surplus striking energy avoiding noise and increasing the die life;
    5.Man- machine interface and automatically malfunction diagnosis, Chinese and English display
    Performance and features
    A.High efficient, energy saving;
    B.Consistent quality of forging;
    C.Lower run cost;
    D.Wide application;
    E.Lower investment cost;
    F.Easy maintenance and operation.
    Technical parameters
    SPEC. CTKA 160 200 250 320 400 500
    Striking energy KJ 160 200 250 320 400 500
    Ram weight KG 9000 10000 11500 13000 17000 22500
    Striking stroke mm 1000 1050 1100 1200 1300 1350
    Striking frequency 60 55 50 45 45 40
    Motor power KW 4×75 4×90 4×90 4×110 6×110 6×132
